INFORMATION

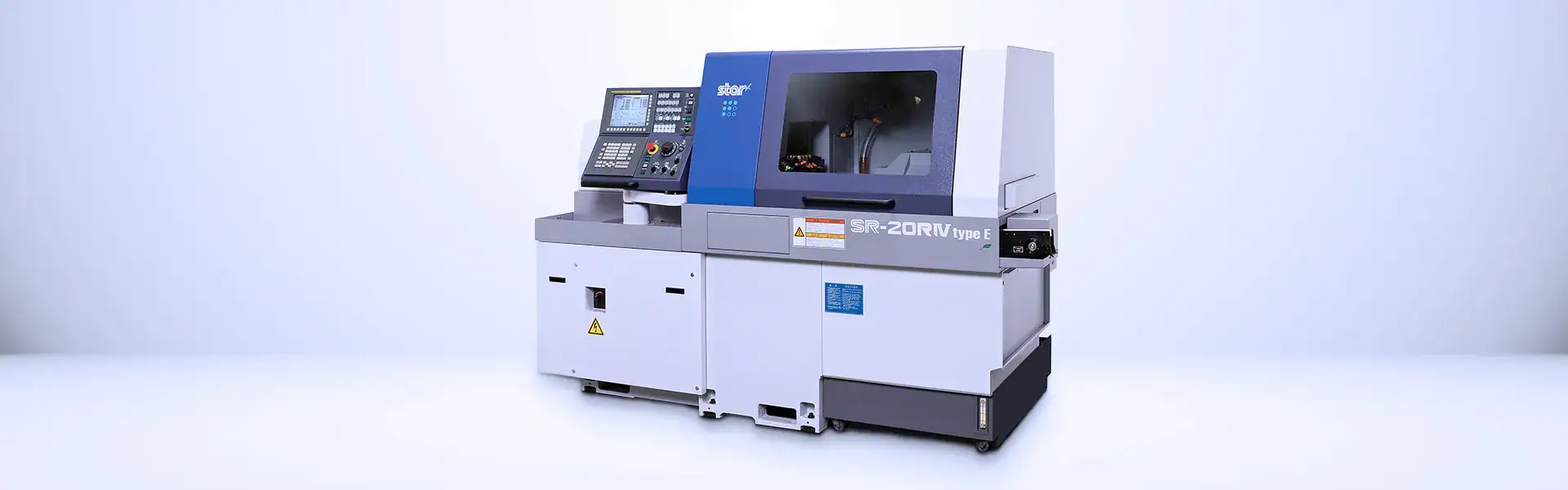

The SR-20RIV Type E is the latest evolution of Star’s popular SR-20RIV series. Building on the success of the Type A and Type B variants, the specification of the new Type E model has evolved to suit the requirements of a wider range of industries.
A key feature of the Type E is the programmable B-axis tool post, which offers simultaneous 4-axis control. This allows for more complex machining tasks, giving users greater production flexibility.
The machine also features Star’s proprietary cross guide structure on the gang-type tool post. This design improves rigidity by reducing load on the guide rails during cutting, supporting long-term accuracy and stable performance in demanding production environments.
Flexibility is further enhanced with the ability to switch between guide bush and non-guide bush modes depending on part length. Offering up to 41 tools on a 27-position station, the SR-20RIV Type E is designed for efficient, high-precision multi-process machining.
BENEFITS
- Standard machining diameter 20mm (22.2mm optional)
- Z1 Stroke of 205mm in Swiss mode (Guide Bush)
- Switchable between guide bush and non-guide bush modes
- Main spindle speed 10,000 rpm, sub-spindle speed 10,000 rpm
- Built-in type main and sub-spindle motors for improved indexing accuracy
- Programmable B axis for angular machining on both spindles
- 8 Station sub-spindle platen for maximum overlapping
- Two independent deep hole drilling stations (main spindle)
DEMO VIDEO
KINEMATIC DIAGRAM
SPECIFICATIONS
Standard Machine Specs SR-20RIV |
||
|---|---|---|
| Max. machining diameter | Ø 20 mm (25/32 in) | |
| Max. headstock stroke | Standard | 205mm (8in) |
| Non-guide bush type | Bar dieameter x 2.5 (Max. 50mm)(Max. 1-31/32in) | |
| Tool | 5 tools on the front + 2 tools on the rear (12mm) | |
| 4-Spindle sleeve holder | Number of tools | Front 4 tools |
| Rear 2 tools | ||
| Max. drilling capability | Ø 12mm(1/2in) | |
| Max. tapping capability | M10xP1.5 | |
| Power driven att. | Number of tools | Cross milling: 3 tools |
| Cartridge type: At 2 position | ||
| Number of tools (type A) | Power-driven tool: At 1 position (Front 3 tools + Rear 3 tools) | |
| Number of tools (type A) | Power-driven tool with B axis: At 1 position (Front 3 tools + Rear 3 tools) | |
| Max. drilling capability | Ø 10mm(25/64in) | |
| Max. tapping capability | M8xP1.25 | |
| Rapid feed rate | 35m/min-1(X1, X2, Y1, Z1, Z2) 15m/min-1(Y2) | |
| 198,000°/min (C), 27,000°/min(B): type B only | ||
| Main spindle with indexing angle | C-axis control | |
| Main spindle motor | 2.2kw (continuous)/ 3.7kw (10min/25%ED) | |
| 2-spindle front sleeve holder | Number of tools (sleeve) | 2 tools |
| Max. drilling capability | Ø 10mm(25/64in) | |
| Max. depth hole | 100mm (3-15/16in) | |
| Power-driven att. spindle speed | Max. 8,000min-1 | |
| Power-driven att. drive motor | 2.2kw | |
| Coolant tank capability | 170l | |
| Dimensions (WxDxH) | 2,334x1,200x1,695mm | |
| Weight | 2,600kg | |
| Power consumption | 4.7KVA | |
Backworking Attachment |
||
|---|---|---|
| Max. chucking diameter | Ø 20 mm (25/32in) | |
| Max. length for front ejection | 80 mm (3-5/32in) | |
| Max. parts projection length | 30 mm (1-3/16in) | |
| Back 8-spindle unit | Number of tools | 8 tools |
| Max. drilling capability | Stationary tool | Ø12mm (1/2in) |
| Non-guide bush type | Ø6mm (15/64in) | |
| Max. tapping capability | Stationary tool | M10xP1.5 |
| Non-guide bush type | M5xP0.8 | |
| Sub spindle indexing angle | C-axis control | |
| Sub spindle speed | Max. 10,000min-1 | |
| Sub spindle motor | Built-in motor drive 2.2kw (continuous)/3.7kw (10min/25%ED) | |
