INFORMATION

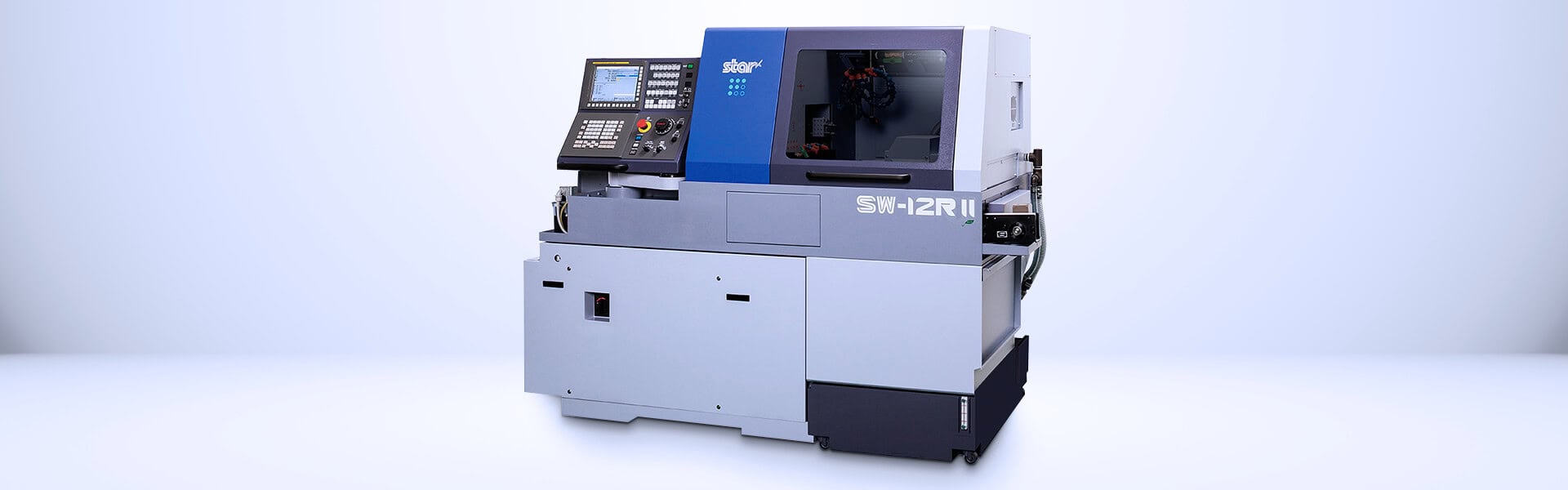

The SW-12RII is the ideal choice where accurate and efficient small diameter machining is critical. This model comes equipped with opposing tool posts for simultaneous machining on the main spindle and an 8 station back working platen which further increases overlapped machining opportunities.
The flexibility of the SW-12RII is further enhanced by its ability to switch between guide bush mode (Swiss type) and non-guide bush mode.
Y2 axis on the sub-spindle platen allows both cross working and front facing power tools to be mounted in any station.
BENEFITS
- Standard machining diameter 13mm
- Z1 Stroke of 135mm in Swiss mode (Guide Bush)
- Rapid axes of up to 35m/min
- Switchable between guide bush and non-guide bush modes
- High speed main and sub-spindles @ 15,000 rpm
- Opposed twin platen for balanced machining on main spindle
- Built-in type main and sub-spindle motors for improved indexing accuracy
- STAR MOTION CONTROL to minimize idle time
- 8 Station sub-spindle platen for maximum overlapping
DEMO VIDEO
KINEMATIC DIAGRAM
SPECIFICATIONS
Standard Machine Specs |
||
|---|---|---|
| Max. machining diameter | Ø 20 mm (25/32 in) | |
| Max. headstock stroke | Standard | 350mm (13-25/32in) |
| With R.M.G.B. | 317mm(12-31/64in) | |
| Front working turret tool post | Front side turret | 8 stations |
| Back side turret | 8 stations | |
| Number of turning tools | Max. 3 tools/station | |
| Tool shank | 12mm/16mm | |
| Sleeve holder | Number of tools | Max. 3 tools/station |
| Max. drilling capability | Ø 14 mm (35/64 in) | |
| Max. tapping capability | M10 x P1.5 | |
| Power driven att. | Number of tools | Max. 2 tools/station |
| Max. drilling capability | Ø 8 mm (5/16 in) | |
| Max. tapping capability | M6 x P1.0 | |
| Spindle speed | Max. 5,750min-1 | |
| Drive motor | 2.5kw | |
| Rapid feed rate | 30m/min (X1, X2, X3, Z1, Z2, Z3) | |
| 15m/min (Y1, Y2, Y3). 3.9m/min (YA2) | ||
| Main spindle indexing angle | C-axis control | |
| Main spindle speed | Max. 10,000min-1 | |
| Main spindle motor | 3.7 kw (continuous)/ 5.5 kw (10min/60%ED) | |
| Coolant tank capability | 213 | |
| Dimension (W x D x H) | 2,988 x 1,720 x 1,845 mm | |
| Center height | 1,083mm (3.55ft) (including leveling pads) | |
| Weight | 4,850kg | |
| Power consumption | 8.5KVA | |
| A-weighted sound pressure | Max. 70dB (A) | |
Backworking Attachment |
||
|---|---|---|
| Max. chucking diameter | Ø 20 mm (25/32in) | |
| Max. pick-up part length | 150 mm (5-7/8in) | |
| Max. part projection length | 75 mm (2-15/16in) | |
| Back working turret tool post | 8 station | |
| Number of turning tools | Max. 3 tools/station | |
| Tool shank | 12mm/ 16mm | |
| Sleeve holder | Number of tools | Max. 3 tools/station |
| Max. drilling capability | Ø 14 mm (35/64 in) | |
| Max. tapping capability | M10 x P1.5 | |
| Power driven att. | Number of tools | Max. 2 tools/station |
| Max. drilling capability | Ø 8 mm (5/16 in) | |
| Max. tapping capability | M6 x P1.0 | |
| Spindle speed | Max. 5,750min-1 | |
| Drive motor | 2.5kw | |
| Sub spindle indexing angle | C-axis control | |
| Sub spindle speed | Max. 10,000min-1 | |
| Sub spindle motor | 3.7kw (continuous)/ 5.5kw (10min/60%ED) | |
