PT Series Pumps
Smarter. Smaller. Stronger.
PressureTech’s new PT Swiss Series is the next evolution of our proven high-pressure coolant systems. It delivers the same power and reliability you trust—now in a compact, space-saving design that fits seamlessly under your bar feeder, reclaiming valuable shop floor space.
More Than a Redesign
PressureTech isn’t just smaller—it’s smarter and more efficient. Every detail has been re-engineered to make your high-pressure system easier to use, easier to maintain, and more dependable in even the most demanding machining environments.
Compact Footprint
Maximizes floor space without compromising performance.
Modular Design
Quick to install, simple to service, and adaptable to your setup.
User-Friendly Operation
Intuitive controls and streamlined functionality.
Built for Reliability
Rugged construction built for continuous operation.
Benefits of High Pressure
- Reduced Cycle Times
- Chip Management
- Increased Tool Life
- High-speed Drilling
- Improved Surface Finish
- Greater Throughput
Benefits of the PT Series
- Low Profile Design
- Touch Screen HMI
- Proven Reliability
- User Programmable Parameters
- Troubleshooting Diagnostics
- Ease of Maintenance
PT-1000
Pressure: 69 bar (1,000 psi)
Coolant type: Oil
PT-1000-H
Pressure: 69 bar (1,000 psi)
Coolant type: Oil
Features:
H = Heat Exchanger
PT-1000-VFD
Pressure: 69 bar (1,000 psi)
Coolant type: Oil
Features:
VFD = Variable Frequency Drive
PT-1000-W
Pressure: 69 bar (1,000 psi)
Coolant type: Oil and Water
Features:
W = Coolant: water and oil
PT-1000-W-VFD
Pressure: 69 bar (1,000 psi)
Coolant type: Oil and Water
Features:
W = Coolant: water and oil
VFD = Variable Frequency Drive
PT-1000-H-VFD
Pressure: 69 bar (1,000 psi)
Coolant type: Oil
Features:
H = Heat Exchanger
VFD = Variable Frequency Drive
PT-2000
Pressure: 138 bar (2,000 psi)
Coolant type: Oil
PT-2000-H
Pressure: 138 bar (2,000 psi)
Coolant type: Oil
Features:
H = Heat Exchanger
PT-2000-VFD
Pressure: 138 bar (2,000 psi)
Coolant type: Oil
Features:
VFD = Variable Frequency Drive
PT-2000-H-VFD
Pressure: 138 bar (2,000 psi)
Coolant type: Oil
Features:
H = Heat Exchanger
VFD = Variable Frequency Drive
SPECIFICATIONS
| Models | PT-1000 | PT-1000-H | PT-1000-VFD | PT-1000-W | PT-1000-W-VFD | PT-1000-H-VFD | PT-2000 | PT-2000-H | PT-2000-VFD | PT-2000-H-VFD |
|---|---|---|---|---|---|---|---|---|---|---|
| Max Output Pressure | 1,000 psi (69 bar) | 1,000 psi (69 bar) | 1,000 psi (69 bar) | 1,000 psi (69 bar) | 1,000 psi (69 bar) | 1,000 psi (69 bar) | 2,000 psi (138 bar) | 2,000 psi (138 bar) | 2,000 psi (138 bar) | 2,000 psi (138 bar) |
| Number of Output Lines | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) | 4 (8 Optional) |
| Max Flow Rate | 32 L/min | 32 L/min | 32 L/min | 25 L/min | 25 L/min | 32 L/min | 20 L/min | 20 L/min | 20 L/min | 20 L/min |
| Motor | 5 hp | 5.58 hp | 5 hp | 5 hp | 5 hp | 5.58 hp | 7 1/2 hp | 8.1 hp | 7 1/2 hp | 8.1 hp |
| Voltage | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) | 208/230/240VAC (460VAC) |
| Full load amps | 14 FLA @ 230VAC (6 A @ 460VAC) |
17 FLA @ 230VAC (9 A @ 460VAC) |
14 FLA @ 230VAC (6 A @ 460VAC) |
14 FLA @ 230VAC (7 A @ 460VAC) |
14 FLA @ 230VAC (7 A @ 460VAC) |
17 FLA @ 230VAC (9 A @ 460VAC) |
23 FLA @ 230VAC (11 A @ 460VAC) |
26 FLA @ 230VAC (13 A @ 460VAC) |
23 FLA @ 230VAC (11 A @ 460VAC) |
26 FLA @ 230VAC (13 A @ 460VAC) |
| KVA ratings | 4.6kVA | 5.2kVA | 4.6kVA | 4.6kVA | 4.6kVA | 5.2kVA | 7kVA | 7.55kVA | 7kVA | 7.55kVA |
| Type of Coolant | Oil Only | Oil Only | Oil Only | Water and Oil | Water and Oil | Oil Only | Oil Only | Oil Only | Oil Only | Oil Only |
| Type of Pump | Gear | Gear | Gear | Diaphragm Pump | Diaphragm Pump | Gear | Gear | Gear | Gear | Gear |
| Heat Exchanger | No | Yes | No | No | No | Yes | No | Yes | No | Yes |
| Filter Ability | 5 Micron | 5 Micron | 5 Micron | 5 Micron | 5 Micron | 5 Micron | 5 Micron | 5 Micron | 5 Micron | 5 Micron |

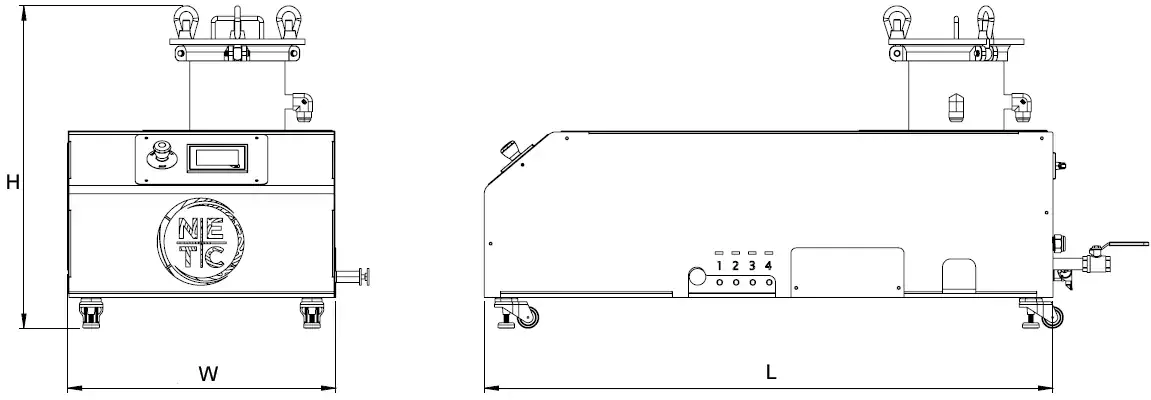

| Dimensions (WxHxL) | 25x30x52 in | 43x30x39 in | 25x30x52 in | 25x30x52 in | 25x30x52 in | 43x30x39 in | 25x30x52 in | 43x30x39 in | 25x30x52 in | 43x30x39 in |
FEATURES AND OPTIONS
Touch Screen HMI
User friendly touch screen gives operators greater control with new features and functionality.
- Programmable parameters
- Real time data on pressure being delivered
- Analytics of pump pressure
- Extensive diagnostics and alarms
Low Profile Design
Specifically designed to fit under barfeeders saving valuable floor space.
- Main body height as low as 18’’ (450mm)
- Fits under most barfeeders with ease
Reliability
Every unit undergoes an extensive quality assurance process before leaving the facility.
- High quality components used throughout
- Only JIC fittings, no hose clamps
- Redundant qualification procedure
- All units leak tested
Heat Exchanger
Pump models can be fitted with a heat exchanger to help maintain lower coolant temperatures.
- Rugged and reliable passive system
- Typically removes 25-50% of the input nameplate power
Electrical
- Touch proof electrical cabinet
- Uses only circuit breakers, no fuses
- Maintenance diagnostics pinpoint faulty components
- Safely operates from -25 to 60°C (-13 to 140°F)
- Meets all CE standards and regulations
Variable Frequency Drive
- Energy Efficiency
- Improved Process Control
- Extended Equipment Life
- Environmental Benefits
- Programmable pressure for each output
