Hwacheon
CNC Milling and Machining Centers

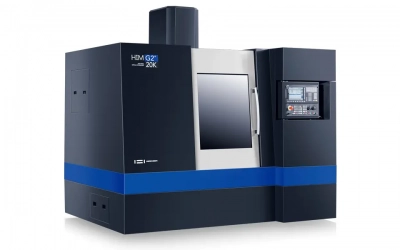

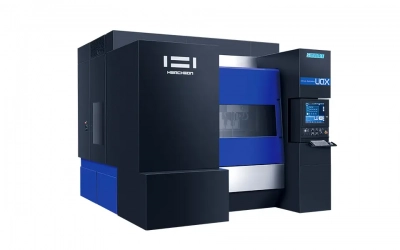

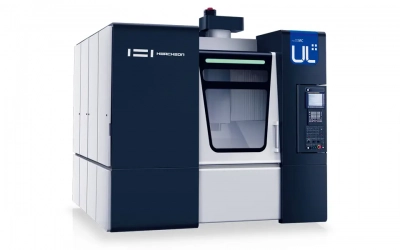

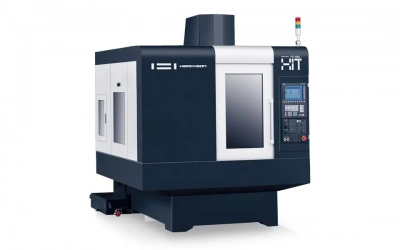

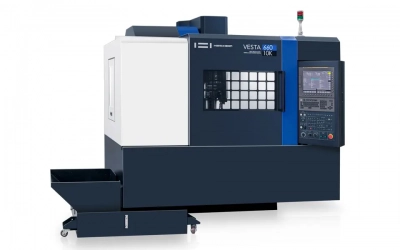

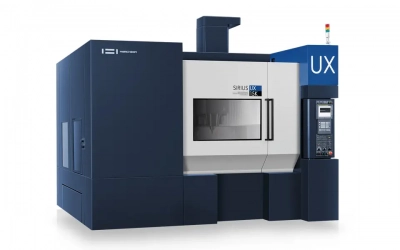

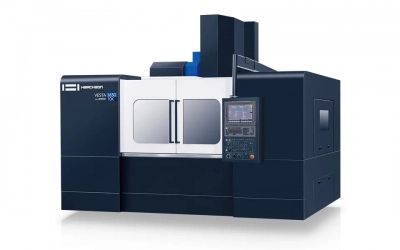

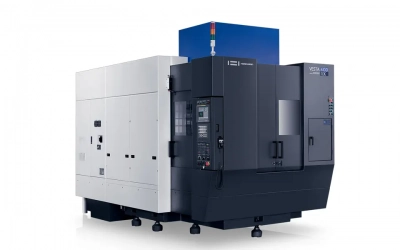

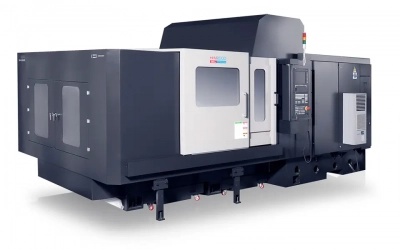

Machining Centers
Stroke (mm) 1,200 / 800 / 500
Spindle Speed (rpm) 20K
Number of Tools (ea) 16 / 24 / 32
Stroke (mm): 1,300 / 800 / 400
Spindle Speed (rpm): 24K / 30K
Number of Tools (ea): 16
Stroke (mm): 1,500 / 1,300 / 350
Spindle Speed (rpm): 24K
Number of Tools (ea): 16
Stroke (mm) 520 / 360 / 300
Spindle Speed (rpm) 12K (SIEMENS : 15K) / 24K
Number of Tools (ea) 21
Stroke (mm) 520 / 400 / 300
Spindle Speed (rpm) 12K (SIEMENS : 15K) / 24K
Number of Tools (ea) 21
Stroke (mm) 700 / 400 / 300
Spindle Speed (rpm) 12K (SIEMENS : 15K) / 24K
Number of Tools (ea) 21
Stroke (mm): 1,050 / 600 / 550
Spindle Speed (rpm): 12K / 14K / 20K / 24K
Number of Tools (ea): 30 / 40
Stroke (mm): 750 / 500 / 450
Spindle Speed (rpm): 20K / 32K / 45K
Number of Tools (ea): 20 / 30 / 40 / 60
Stroke (mm): 1,500 / 750 / 650
Spindle Speed (rpm): 12K / 15K
Number of Tools (ea): 40 / 60
Stroke (mm): 1,050 / 600 / 550
Spindle Speed (rpm): 12K / 14K / 20K / 24K
Number of Tools (ea): 120
Stroke (mm): 1,300 / 750 / 420
Spindle Speed (rpm): 12K / 20K
Number of Tools (ea): 50
Stroke (mm): 1,000 / 550 / 500
Spindle Speed (rpm): 10K / 12K / 15K
Number of Tools (ea): 30
Stroke (mm): 1,050 / 600 / 600
Spindle Speed (rpm): 6K / 8K
Number of Tools (ea): 24 / 30
Stroke (mm): 1,300 / 670 / 650
Spindle Speed (rpm): 8K / 10K / 12K / 15K
Number of Tools (ea): 24 / 30
Stroke (mm): 1,300 / 670 / 650
Spindle Speed (rpm): 6K / 8K / 10K / 12K / 15K
Number of Tools (ea): 24 / 30
Stroke (mm): 1,650 / 750 / 675
Spindle Speed (rpm): 8K / 10K / 12K / 15K
Number of Tools (ea): 24 / 30 / 32 / 40 / 60
Stroke (mm): 2,000 / 850 / 800
Spindle Speed (rpm): 8K / 10K / 12K / 15K
Number of Tools (ea): 24 /30
Stroke (mm): 520 / 400 / 380
Spindle Speed (rpm): 24K
Number of Tools (ea): 24 / 24
Stroke (mm): 610 / 430 / 570
Spindle Speed (rpm): 10K / 12K / 15K
Number of Tools (ea): 24
Stroke (mm) 650 / 650 / 700
Spindle Speed (rpm) 12K / 15K
Number of Tools (ea) 30 / 30
Stroke (mm): 660 / 430 / 400
Spindle Speed (rpm): 10K / 12K / 15K
Number of Tools (ea): 20
Stroke (mm): 850 / 600 / 600
Spindle Speed (rpm): 6K / 8K
Number of Tools (ea): 24 / 30

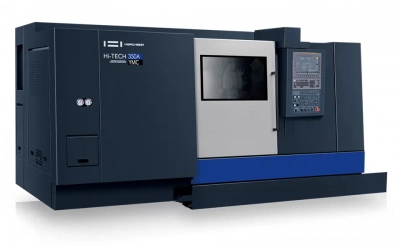

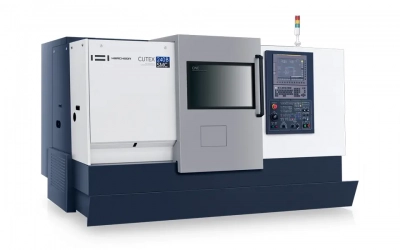

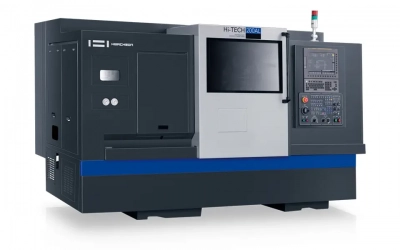

Horizontal Turning Centers
Max Cutting Diameter (mm): 630
Max Bar Size (mm): 65
Max Cutting Length (mm): 557
Spindle Motor (kW): 15
Max Cutting Diameter (mm) 260 / 300
Max Bar Size (mm) 56 / 62
Max Cutting Length (mm) 209 ~ 300
Spindle Motor (kW) 15
Max Cutting Diameter (mm): 300 / 350
Max Bar Size (mm): 51 / 65
Max Cutting Length (mm): 252 ~ 528
Spindle Motor (kW): 15
Max Cutting Diameter (mm) 355 / 380
Max Bar Size (mm) 51 / 100 / 130
Max Cutting Length (mm) 548 ~ 680
Spindle Motor (kW) 18.5
Max Cutting Diameter (mm) 325 / 350
Max Bar Size (mm) 51 / 65 / 76
Max Cutting Length (mm) 298 ~ 611
Spindle Motor (kW) 18.5
Max Cutting Diameter (mm): 400 / 425
Max Bar Size (mm): 65 / 81
Max Cutting Length (mm): 320 ~1,143
Spindle Motor (kW): 18.5
Max Cutting Diameter (mm) 420
Max Bar Size (mm) 65 / 76
Max Cutting Length (mm) 661 ~ 1,261
Spindle Motor (kW) 18.5 / 22
Max Cutting Diameter (mm) 420 / 500
Max Bar Size (mm) 76 / 89
Max Cutting Length (mm) 550 ~ 1,360
Spindle Motor (kW) 22 / 26
Max Cutting Diameter (mm): 590
Max Bar Size (mm): 116
Max Cutting Length (mm): 1,100 ~ 3,200
Spindle Motor (kW): 30
Max Cutting Diameter (mm): 590
Max Bar Size (mm): 190
Max Cutting Length (mm) –
Spindle Motor (kW): 37
Max Cutting Diameter (mm): 600
Max Bar Size (mm): 117 / 165
Max Cutting Length (mm): 1,108 ~ 3,208
Spindle Motor (kW): 37 / 45
Max Cutting Diameter (mm): 680
Max Bar Size (mm): 116
Max Cutting Length (mm): 1,866 ~ 1,986
Spindle Motor (kW): 37
Max Cutting Diameter (mm): 680
Max Bar Size (mm): 180 / 295
Max Cutting Length (mm) –
Spindle Motor (kW): 45
Max Cutting Diameter (mm): 760
Max Bar Size (mm): 116 / 164
Max Cutting Length (mm): 2,141 ~ 4,250
Spindle Motor (kW): 37 / 45
Max Cutting Diameter (mm): 920
Max Bar Size (mm): 164
Max Cutting Length (mm): 2,500 ~ 5,100
Spindle Motor (kW): 45
Max Cutting Diameter (mm): 920
Max Bar Size (mm): 295 / 370
Max Cutting Length (mm) –
Spindle Motor (kW): 45
Max Cutting Diameter (mm): 460
Max Bar Size (mm): 65
Max Cutting Length (mm): 444
Spindle Motor (kW): 15
Max Cutting Diameter (mm): 400
Max Bar Size (mm): 59
Max Cutting Length (mm): 203
Spindle Motor (kW): 18.5

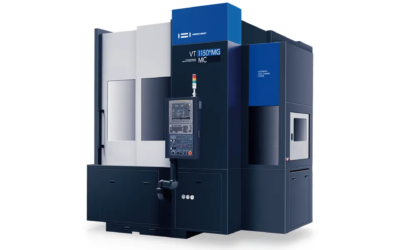

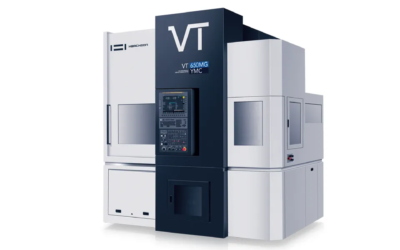

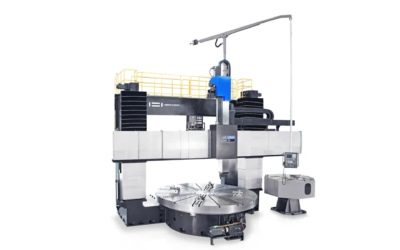

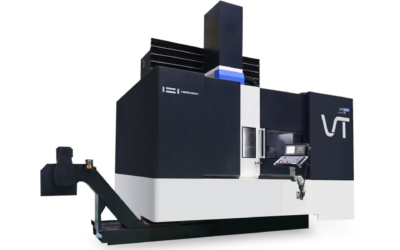

Vertical Turning Centers
Max Cutting Diameter (mm): 460
Max Cutting Length (mm): 394 / 460
Spindle Motor (kW): 22
Max Cutting Diameter (mm): 650
Max Cutting Length (mm): 671 / 700
Spindle Motor (kW): 22
Max Cutting Diameter (mm): 950
Max Cutting Length (mm): 850
Spindle Motor (kW): 30 / 45
Max Cutting Diameter (mm): 1,150 / 1,320
Max Cutting Length (mm): 950
Spindle Motor (kW): 55
Max Cutting Diameter (mm): 1,650
Max Cutting Length (mm): 1,300
Spindle Motor (kW): 26
Max Cutting Diameter (mm): 2000
Max Cutting Length (mm): 1800
Spindle Motor (kW): 26
Max Cutting Diameter (mm): 2,500
Max Cutting Length (mm): 1,100 / 2,100
Spindle Motor (kW): 75
Max Cutting Diameter (mm): 4,000
Max Cutting Length (mm): 2,500
Spindle Motor (kW): 100
Max Cutting Diameter (mm): 5,000
Max Cutting Length (mm): 2,500
Spindle Motor (kW): 129
General
Swing over Bed (mm) 400
Swing over Saddle (mm) 238
Distance between Centers (mm) 750
Spindle Motor (kW) 3
Swing over Bed (mm): 460
Swing over Saddle (mm): 280
Distance between Centers (mm): 1,000 / 1,500
Spindle Motor (kW): 5.5
Swing over Bed (mm): 580
Swing over Saddle (mm): 360
Distance between Centers (mm): 1,500 / 2,000
Spindle Motor (kW): 7.5
Swing over Bed (mm): 720
Swing over Saddle (mm): 470
Distance between Centers (mm): 2,000 / 3,000
Spindle Motor (kW): 11
Swing over Bed (mm): 950
Swing over Saddle (mm): 630
Distance between Centers (mm): 3,000 / 4,000 / 5,000 / 6,000
Spindle Motor (kW): 15
