INFORMATION

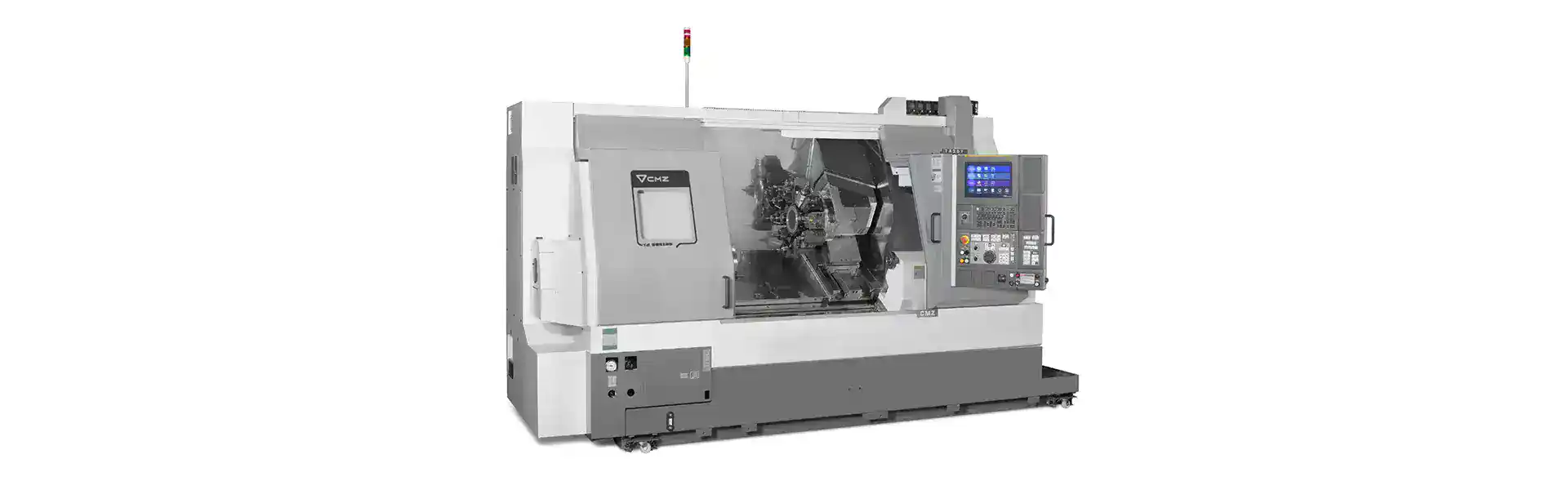

The TA Series is a modular series of CNC turning centers built to handle anything from simple turning to complex multi-operation applications. With a rigid prismatic box guide ways structure, integrated motor spindles, and advanced thermal control, the machines deliver consistent precision in demanding production environments. Customers can select the ideal configuration by choosing bed length, spindle capacity, turret capability, and rear support options — ensuring the machine perfectly matches their part, complexity, and throughput requirements.
BENEFITS
- Modular configuration — including bed length, bar capacity, machining axis, and support options for each application
- High performance and continuous production — robust cast-iron frame and oil-cooled spindles maintain accuracy over long cycles
- Single-setup machining — Y-axis and sub-spindle options enable full 1 and done production
- Long-term accuracy — thermal stability and direct-drive components enhance surface finish and tool life
- Automation ready — compatible with bar feeders, gantry loaders, and robotic handling systems
CONFIGURATIONS
With its fully modular design, the TA Series allows you to build the machine around your production needs.
Bed length options
Select the ideal Z-axis capacity to match your part dimensions and floor-space requirements.

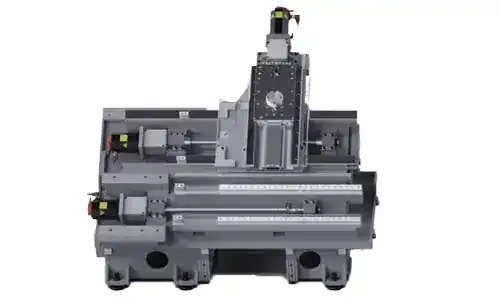

Z400
Z-axis travel: 400mm

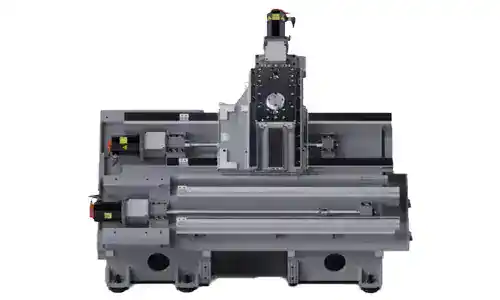

Z640
Z-axis travel: 640mm

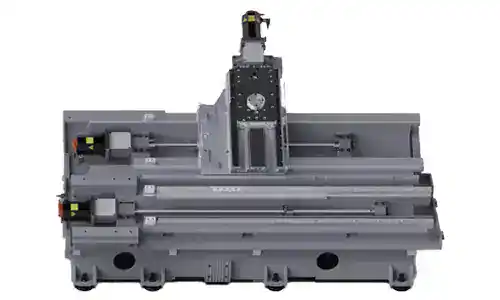

Z1100
Z-axis travel: 1100mm
Main spindle options
Select the spindle capacity that aligns with your bar diameter and machining power requirements.

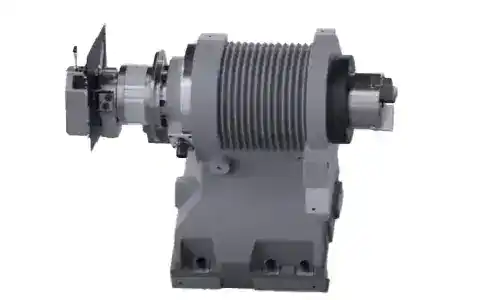

TA15
Maximum bar diameter: 52 mm
Spindle power: 19 HP
TA20
Maximum bar diameter: 66 mm
Spindle power: 30 HP
TA25
Maximum bar diameter: 66 mm
Spindle power: 47 HP

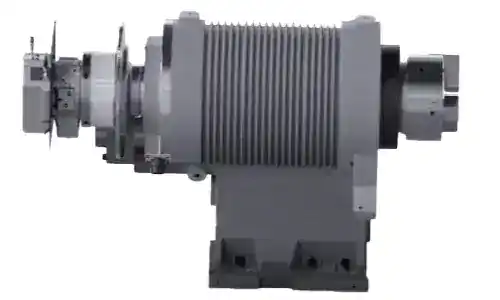

TA30
Maximum bar diameter: 82 mm
Spindle power: 57 HP
ACCURACY AND RELIABILITY

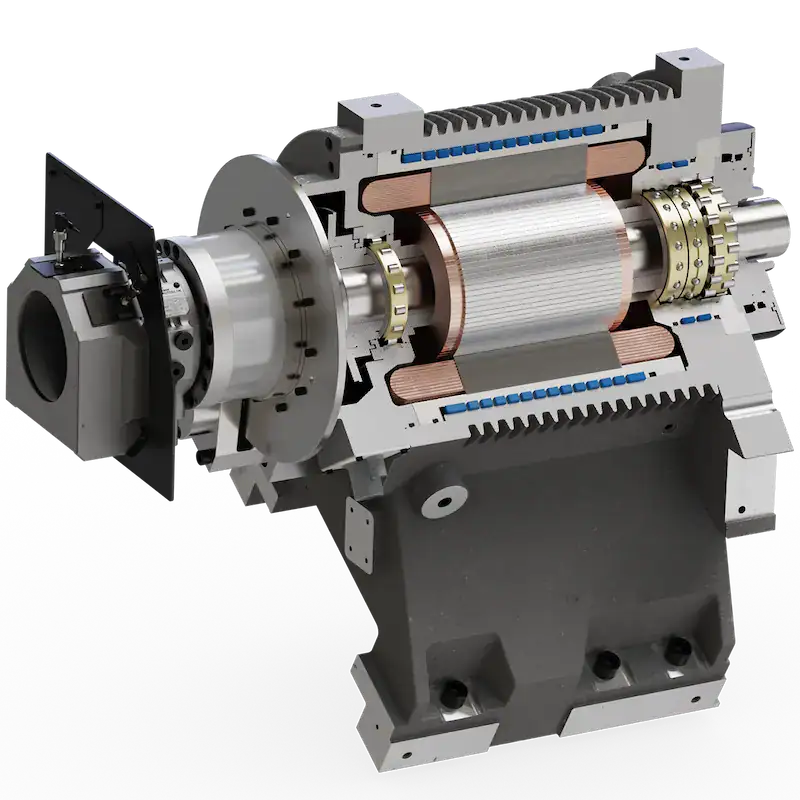

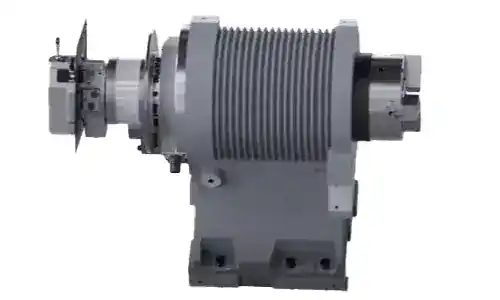

INTEGRATED OIL-COOLED SPINDLES
Direct drive spindles produce much lower noise levels and better surface finishes. In addition, with a double row of roller bearings the spindles can withstand substantial impacts without damage.
Turret options
Select the turret capacity that best fits your typical tool requirements and part complexity.

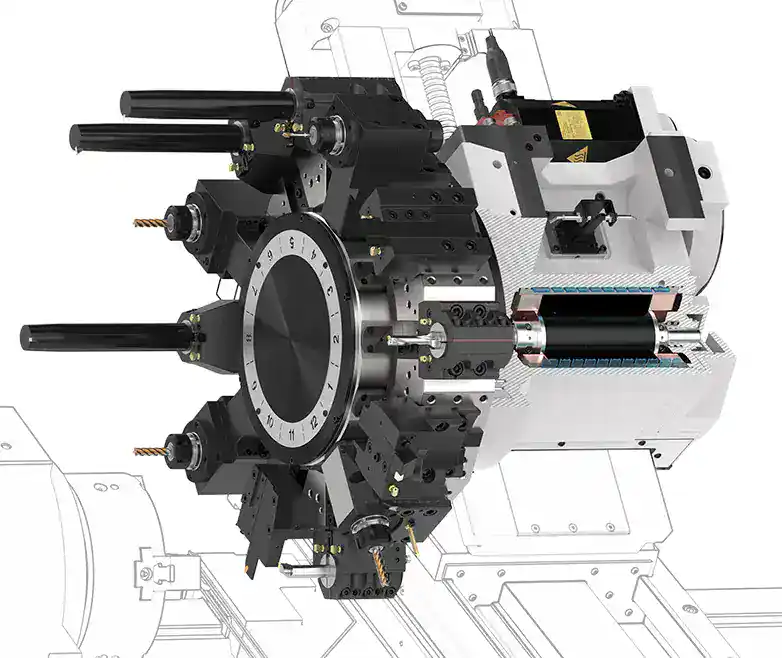

12 tool positions

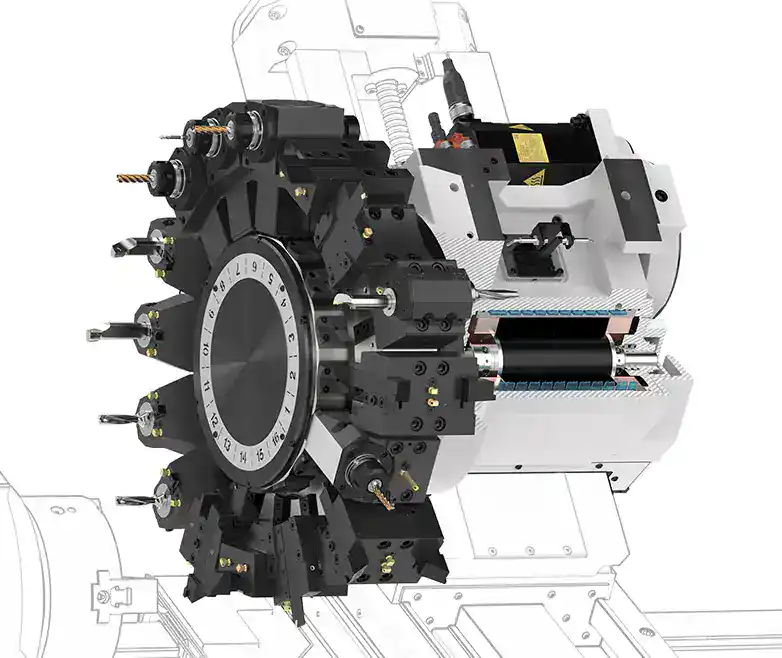

15 tool positions
14.7HP, 12,000 RPM

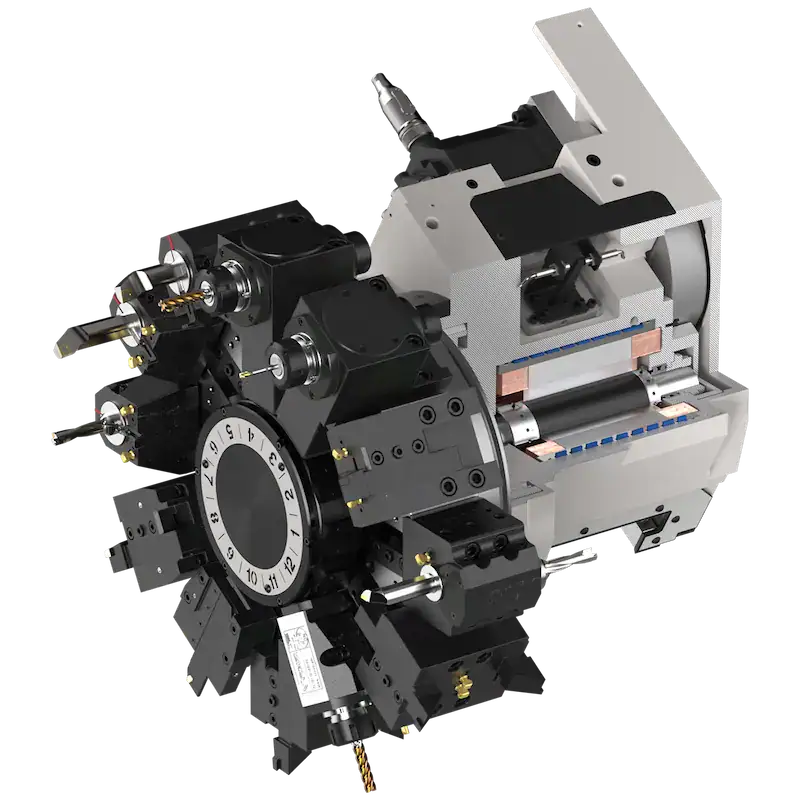

TURRET WITH A BUILT-IN MOTOR AND HYDRAULIC CLAMPING
The turret is cooled with oil, which gives this machine greater thermal stability. The ultra-rigid turret locks with a 3-piece curvic coupling design. The non-lift turret disk unclamps internally when moving away from the workpiece and clamps during the approach reducing tool change times of 0.2 sec.
Machining Capabilities
Select the turret features — from standard turning to full Y-axis and driven tooling — to perform more operations in a single setup.

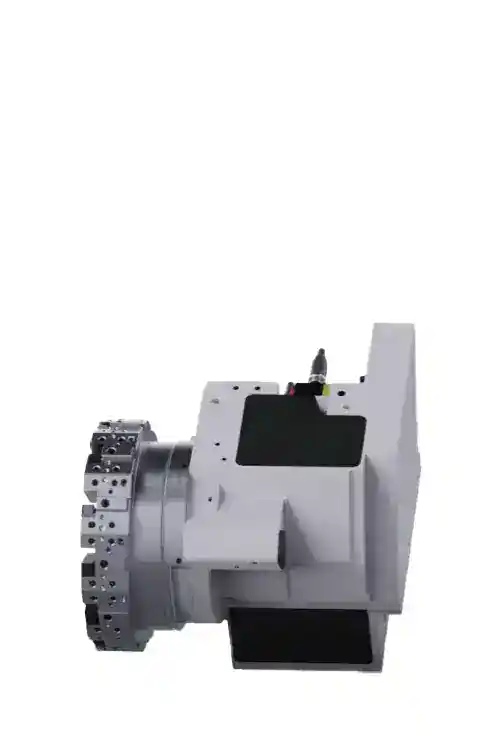

TAxx
Standard
Ideal for simple turning operations with maximum stability and simplicity.

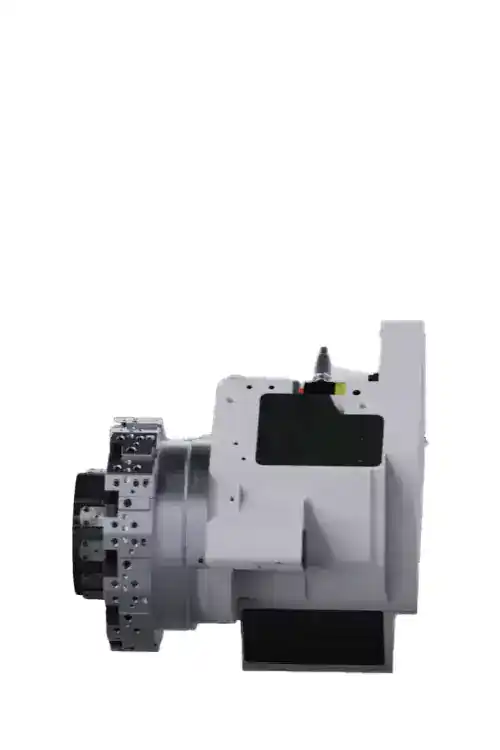

TAxxM
M (Driven Tools)
Adds live tooling for drilling, tapping, and milling features without secondary operations.

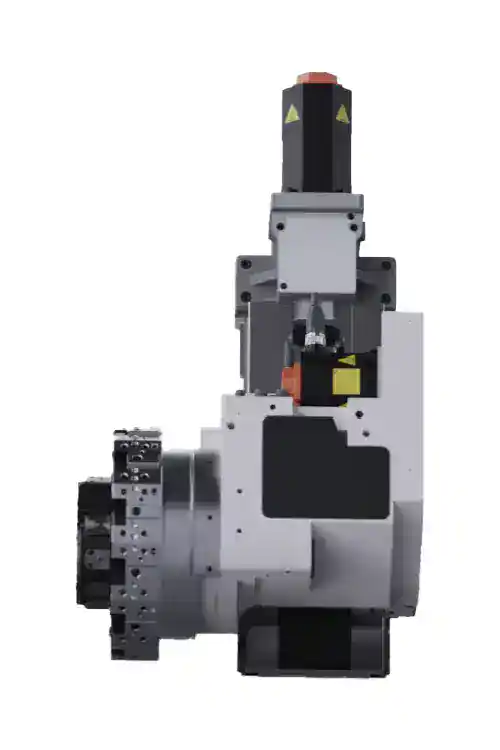

TAxxY
Y (Y-Axis + Driven Tools)
Enables full multi-axis machining for complex geometries and complete part processing in a single setup.
Rear support options
Select the rear support configuration that best suits your part length, stability, and back-side machining needs.

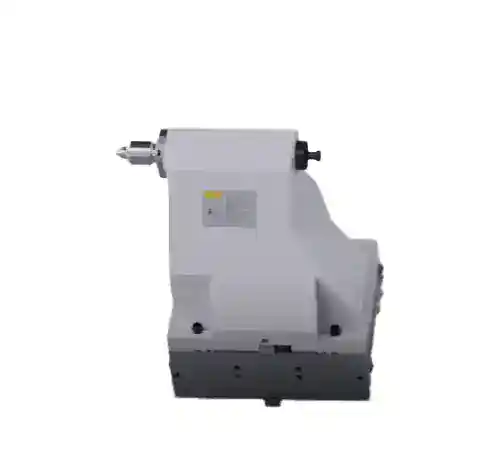

Tailstock
Provides stable support for longer parts to reduce deflection and maintain accuracy during turning operations.

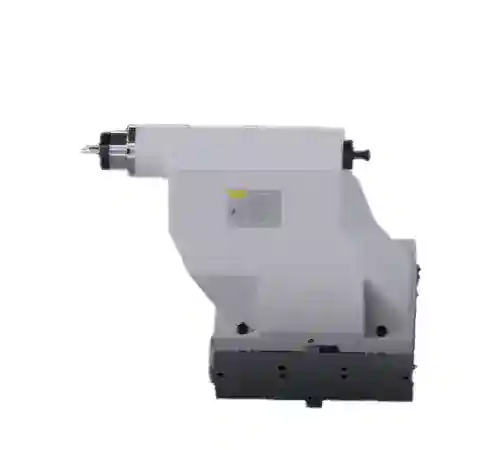

Servo Tailstock
Offers programmable positioning and improved clamping control for repeatable and automated processing of longer components.

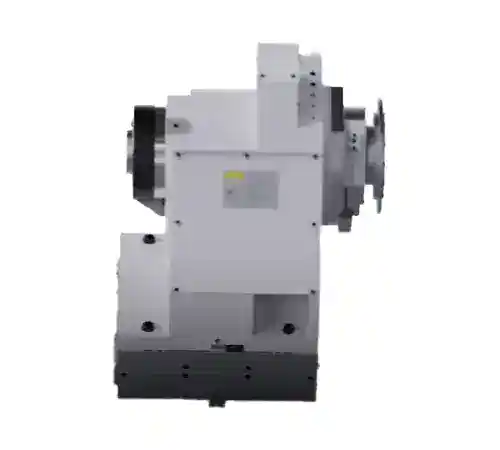

Sub-Spindle
Enables complete back-side machining in a single setup by transferring the part for secondary operations without manual handling.
DEMO VIDEO
CONFIGURATIONS

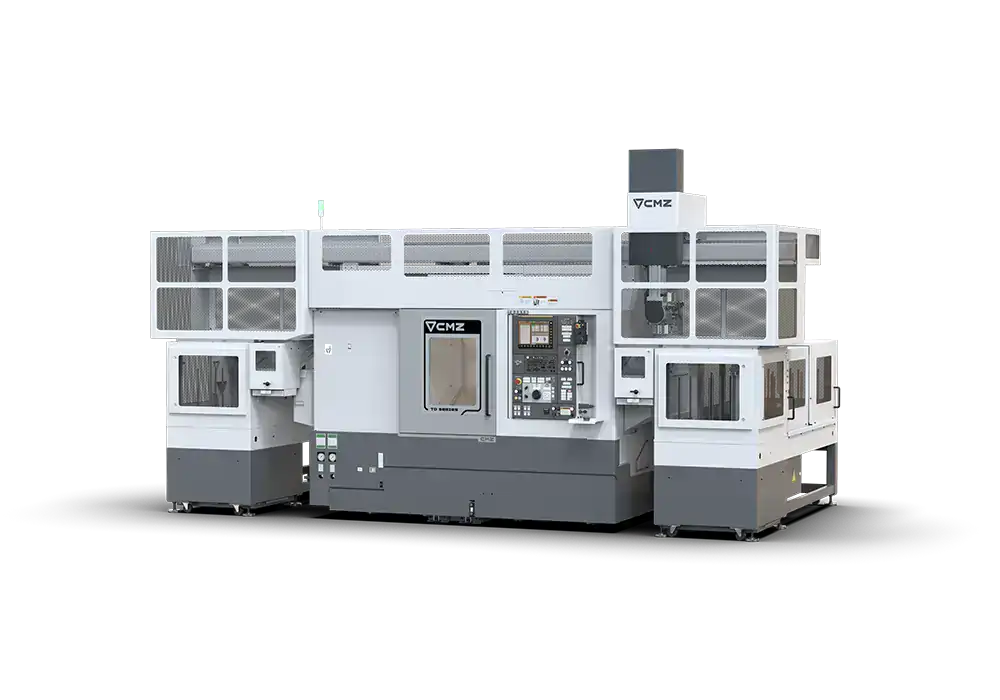

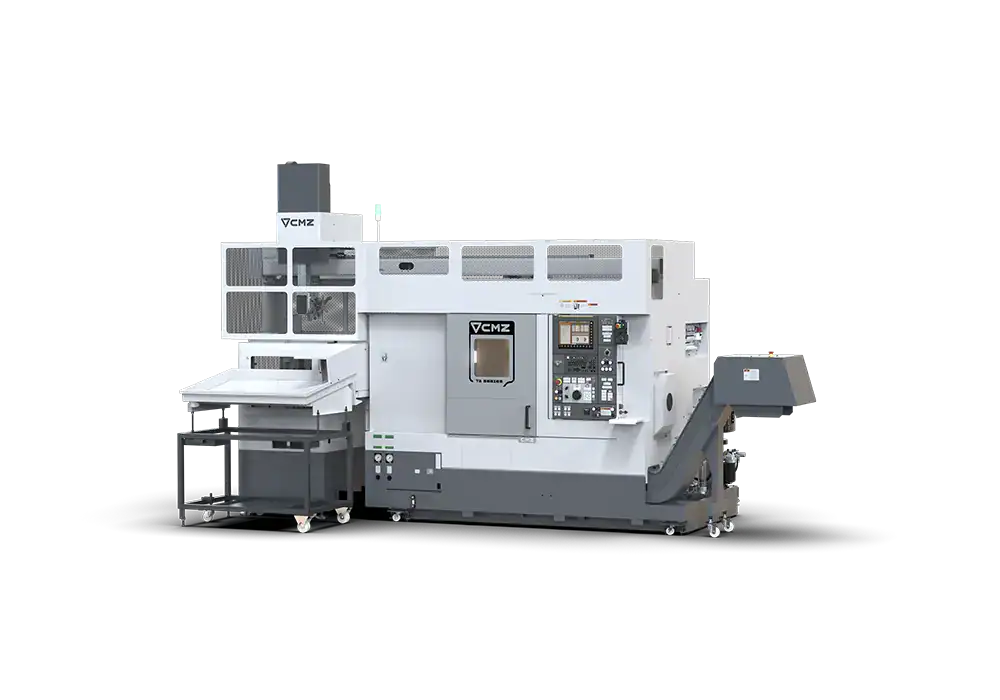

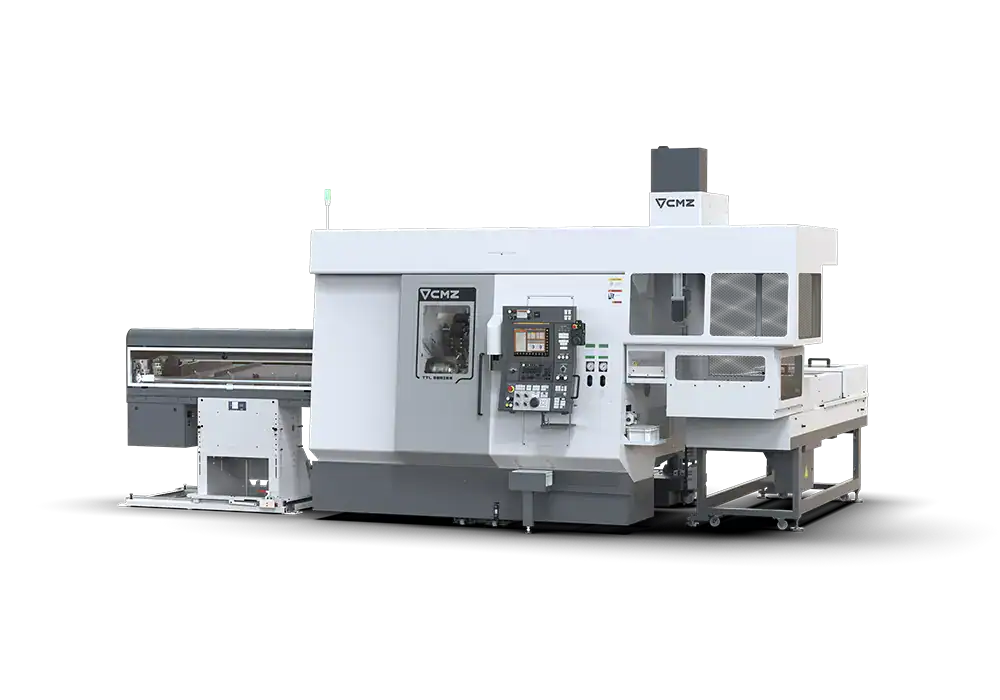

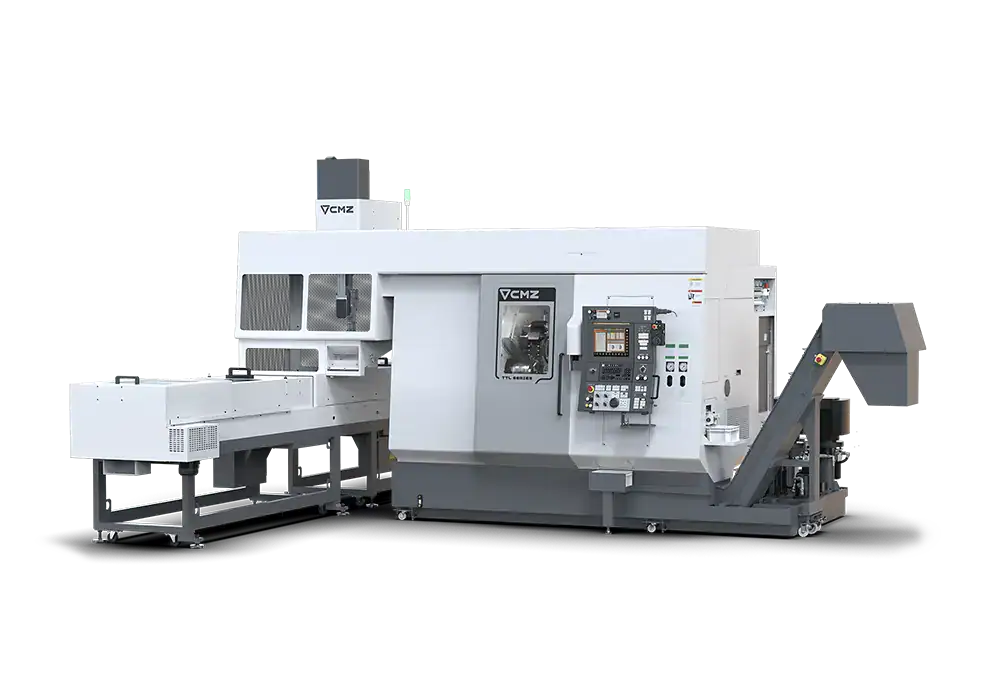

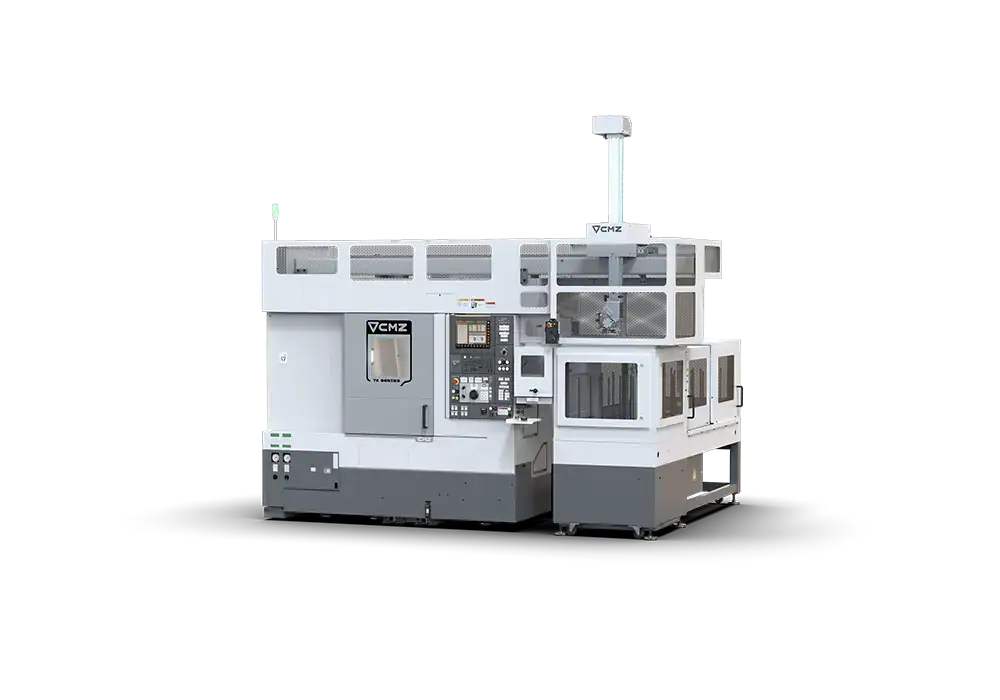

GANTRY LOADING / UNLOADING AUTOMATION SOLUTIONS AVAILABLE ON MOST MODELS
SPECIFICATIONS
