Big does NOT mean slow. That’s the phrase that best sums up our large TD Series Z2200-Z3200 lathe. With this series we offer an extremely rigid and robust lathe for machining longer parts. These are machines have beds of more than 2 or 3 metres between the chuck and tailstock for longer parts. All TD machines have integrated, powerful, high torque spindles, as opposed to more obsolete spindles with reduction boxes. In addition, there is an option for a double pneumatic cylinder (chucks on both ends of the headstock) with a 192 mm through bore. As in all our machines, the turret has a built in motor facilitating power driven tools : 12,000 rpm, 105 Nm and 13 kW. They are long bed lathes manufactured with first class components that provide great stability and machining power. If you need to machine shafts or huge parts, you will find the long bed lathe you are looking for in this product range.
BENEFITS
- Built for long parts without compromise — engineered with beds over 2–3 m for machining long shafts and large components while maintaining speed and precision.
- High rigidity and power — robust oil-cooled integrated spindles deliver strong torque and stability for heavy cutting and demanding workloads.
- Efficient turret performance — motorised turret with up to 12,000 rpm, fast indexing, and large tool holders reduces machining time and minimizes interference.
- Excellent precision over extended runs — laser compensation and high-quality components ensure consistent part accuracy even on long cycles.
- Flexible handling of large diameters — optional double pneumatic chucks and through-bore capability support large and heavy parts with secure clamping.
CONFIGURATIONS
With its fully modular design, the TD Series allows you to build the machine around your production needs.
Bed length options
Select the ideal Z-axis capacity to match your part dimensions and floor-space requirements.
Z2200
Z-axis travel: 2200mm
Z3200
Z-axis travel: 3200mm
Main spindle options
Select the spindle capacity that aligns with your bar diameter and machining power requirements.
TD15
Maximum bar diameter: 52 mm
Spindle power: 19 HP
TD20
Maximum bar diameter: 66 mm
Spindle power: 30 HP
TD25
Maximum bar diameter: 66 mm
Spindle power: 47.6 HP
TA30
Maximum bar diameter: 66 mm
Spindle power: 57 HP
TA35
Maximum bar diameter: 95 mm
Spindle power: 65 HP
TA45
Maximum bar diameter: 127 mm
Spindle power: 69 HP
TA55
Maximum bar diameter: 192 mm
Spindle power: 69 HP
ACCURACY AND RELIABILITY

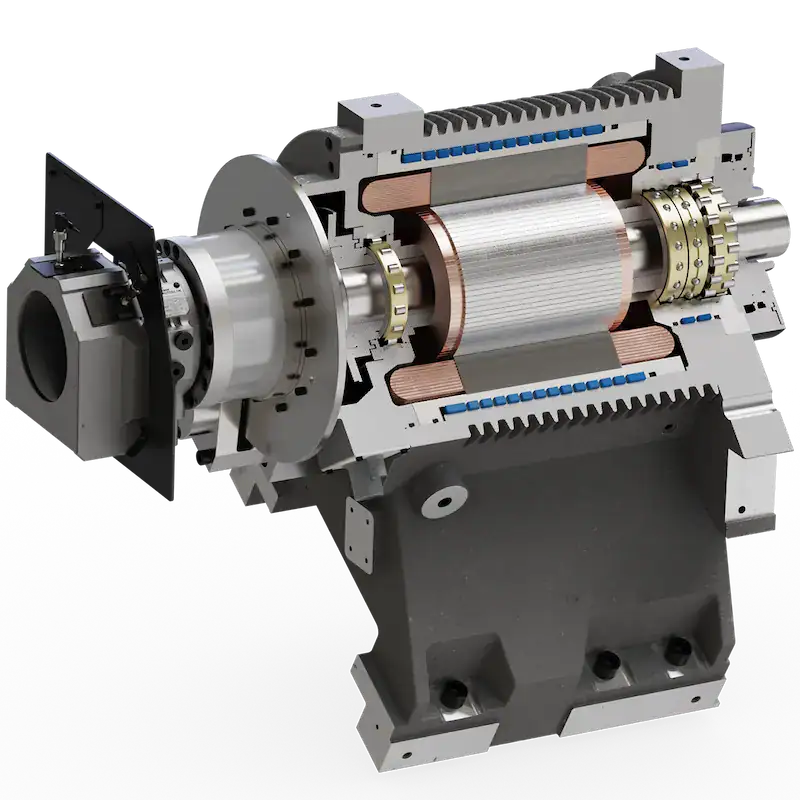

INTEGRATED OIL-COOLED SPINDLES
Direct drive spindles produce much lower noise levels and better surface finishes. In addition, with a double row of roller bearings the spindles can withstand substantial impacts without damage.
Turret options
Select the turret capacity that best fits your typical tool requirements and part complexity.
12 tool positions
16 tool positions
17.6HP, 105NM, 12,000 RPM

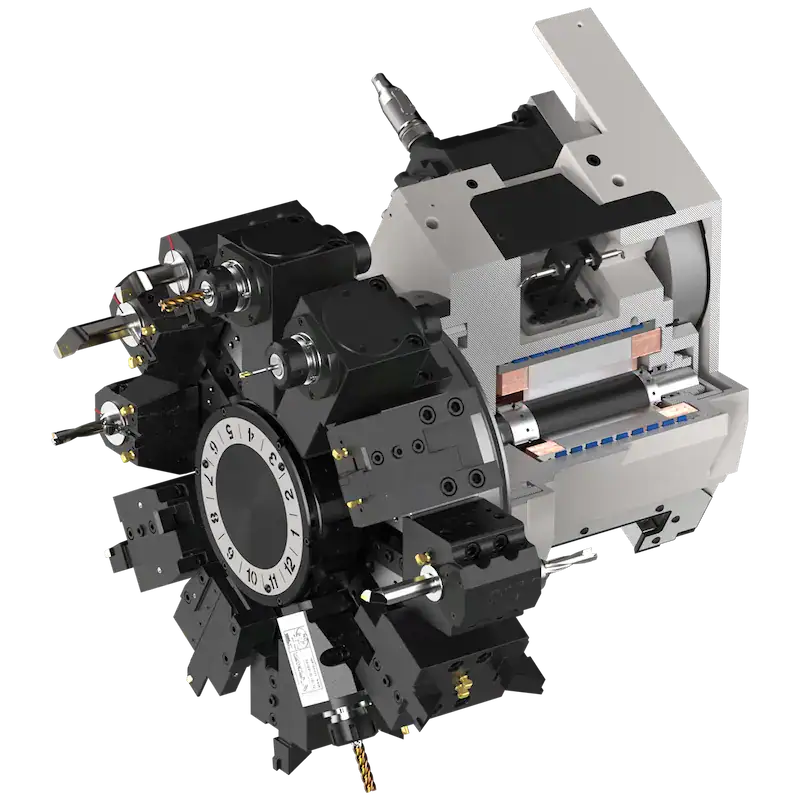

TURRET WITH A BUILT-IN MOTOR AND HYDRAULIC CLAMPING
This long bed lathe incorporates a robust oil-cooled turret whose large-diameter tool-holders reduce interference between tools and the chuck. The non-lift turret disk unclamps internally when indexing achieving an effective 0.2 second indexing time. It also remains completely sealed preventing the ingress of dirt.
Machining Capabilities
Select the turret features — from standard turning to full Y-axis and driven tooling — to perform more operations in a single setup.
TDxx
Standard
Ideal for simple turning operations with maximum stability and simplicity.
TDxxM
M (Driven Tools)
Adds live tooling for drilling, tapping, and milling features without secondary operations.
TDxxY
Y (Y-Axis + Driven Tools)
Enables full multi-axis machining for complex geometries and complete part processing in a single setup.
BIG DOES NOT MEAN SLOW
