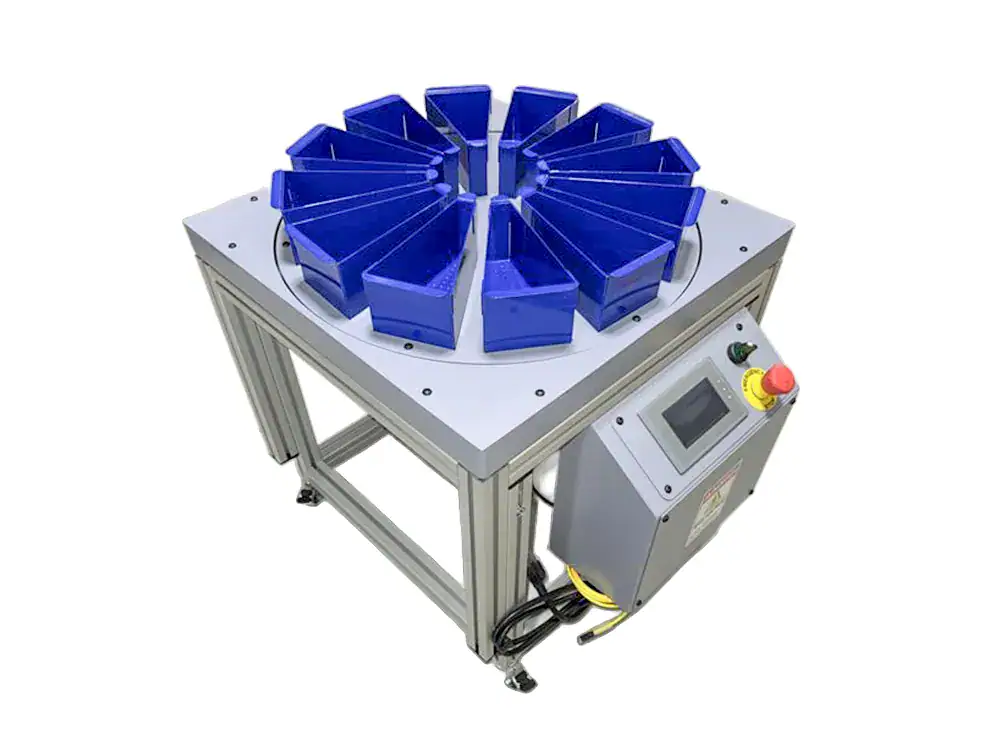

Parts Carousel Smart Table ST-22
Category: Part Carousel

SMART Table Automated Parts Carousel ST-22 is our newest product, made to operate in 3 different modes: It can be M-code programmed, use a timer setting or use a counter output from the CNC control.

Advantages

  • Fully programmable with 3 different modes
  • Durable and rigid metal construction
  • Powder-coated metal bins
  • The drainage system returns oil to the machine
  • Mobile and adaptable to many many machines
  • Height Adjustable

Operates in 3 Different Modes

  • M-Code Programmable
  • Timer Setting
  • Counter Output from CNC Control

Motor with Geared Drive

  • Provides large amounts of torque
  • Accurate indexing

Mobile

  • Heavy duty casters
  • Comes standard with 120V electrical plug (other power options by request)
  • Move from one machine to another

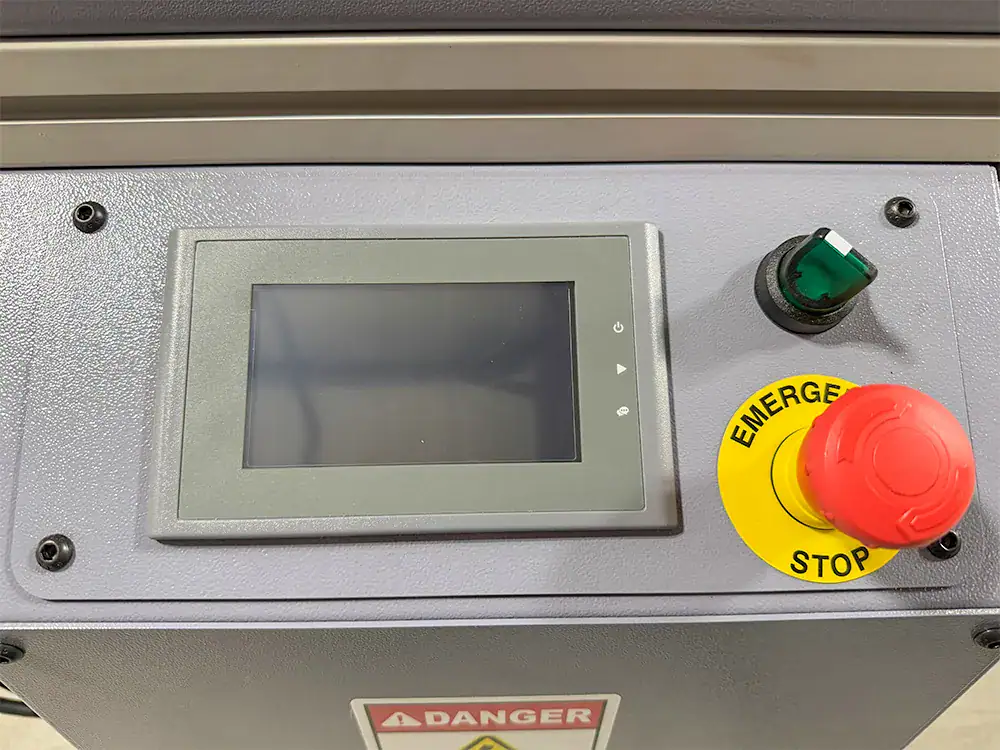

Touch Screen HMI

User friendly touch screen gives operators greater control with new features and functionality

  • 4.3’’ Touch Display
  • Allows for changing of mode, counter, timers
  • Displays current timer, counter status and alarm information
  • Comes standard with 120 V electrical plug (other power options by request)

Powder Coated Metal Bins

  • 14 bins standard
  • Choose square, pie, or a combination
  • Perforated bottom drains the oil
  • Custom shapes and sizes by request

Height Adjustable Legs

Adjust the unit between 22-32’’

Drainage System

Excess oil is fed back to the machine tank

GALLERY

SPECIFICATIONS

Dimensions 23″ W x 28″ D x 22-32″ H
Voltage 120 VAC (200-500 on request)
Weight 96 lbs.
