INFORMATION
High-Efficiency Mist & Smoke Removal
Up to 99% per ASHRAE 52.2. Effective on all metalworking fluids.
Economical Operation
Triple-Pass ESP Technology operates on less than 450 watts and does not require disposable filters.
Easy Installation

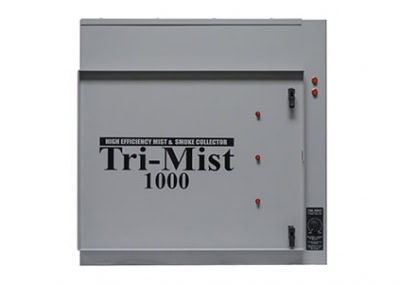

The TRI-MIST 1000 is compact and can be directly mounted to the machine tool enclosure. Optional flex-duct and inlet plenum options allow for ceiling, wall, or floor mount installations.
BENEFITS
Longest warranty in its class with a 48 month limited warranty. Better built – Better backed!
GALLERY
SPECIFICATIONS

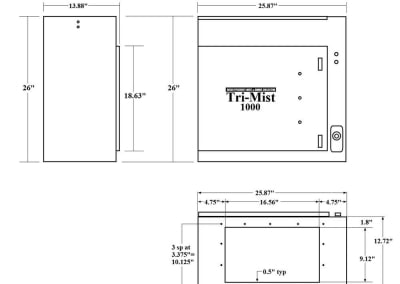

| Dimensions | 26” x 13.75” x 26” Inlet Opening: 16.70” x 9.10” |
|---|---|
| Cabinet | 16 ga. Steel welded with chemical resistant powder paint |
| Weight | 115 lbs Installed; 145 lbs. Shipping |
| Efficiency | Up to 99% per ASHRAE 52.2 |
| Filtration 1st stage | two 2” mechanical impingers |
| Filtration 2nd stage | ESP cell 53 sq. ft. of surface area (Minimum voltage gradient is 20,000 volts per inch.) |
| Filtration 3rd stage | ESP cell 53 sq. ft. of surface area |
| Filtration 4th stage | ESP cell 53 sq. ft. of surface area |
| Filtration 5th stage | 1” thick post filter |
| Filtration 6th stage | Optional HEPAMAX filter rated at 99.97% DOP @ .3 micron |
| Airflow | 50-1000 CFM |
| ESP Power Supply | Solid state & self-regulating |
| Electrical Rating | |
| 115 V , 50-60 HZ, 4 amps | |
| 200-240 V, 50-60 HZ, 2 amps. (Standard) | |
| 400-480V, 50-60 HZ, 1 amp | |
| Note: Voltage must be specified when ordered. Input voltage cannot be changed in the field. Units are usually ordered to match the machine application to be powered in tandem. | |
| Impeller | Vibration free, backward curve rated at 1100 cfm @ 0.0” w.g. |
| Sound Levels | 69 dBa |
| Additional Features | |
| Triple Pass ESP Technology | |
| Coated cells | |
| Motor and control prewired | |
| Variable Speed Controller | |
| Optional Accessories | |
| Source capture plenums | |
| 6th Stage HEPA | |
| Floor mount stands | |
| Ceiling hanging kit | |
| Flex Duct |
