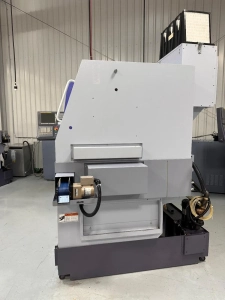

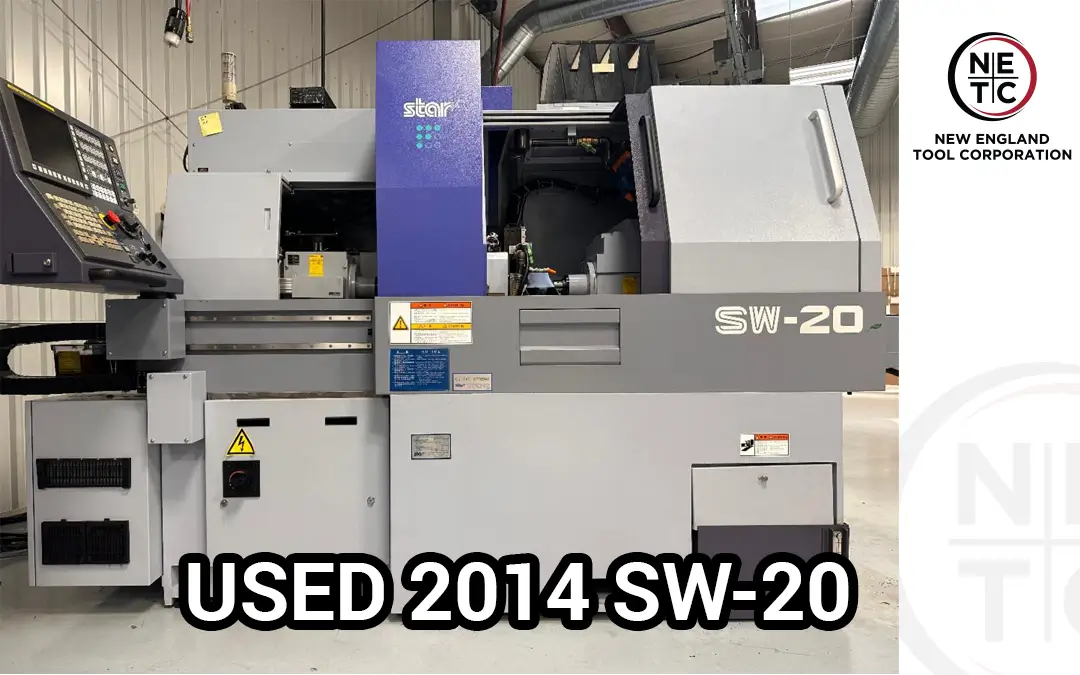

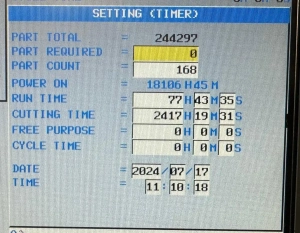

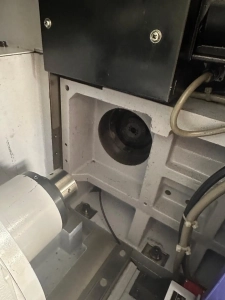

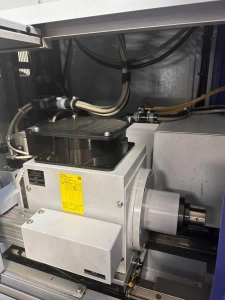

USED 2014 SW-20
Factory modified for 12 mm capacity with 15K Main and Sub Spindle

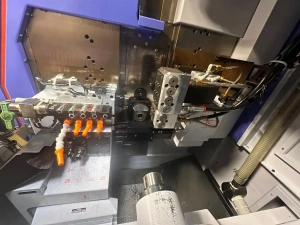

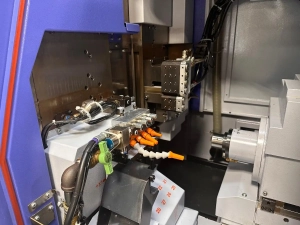

The SW-20 comes equipped with opposing tool posts for simultaneous machining on the main spindle and an 8 station back working platen for overlapped machining on the sub-spindle.
INCLUDED WITH THE MACHINE:
- NJ2000 (8 Line, 2000 PSI) High pressure pump with heat exchanger

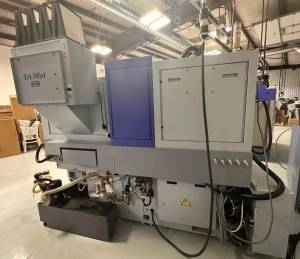

- Tri Mist. Mist Collector
- HEPA Filter
- Pneumatic Part Ejector
- Beacon Light
- Parts Conveyor
- Custom Electrical (Single Power Drop,powering the machine and HP pump)
THE FOLLOWING TOOLING IS INCLUDED:
- 2 X NSK iSpeed3 Controllers
- 2 NSK BM322FL Spindle
- 2 NSK BM322FS Spindle
- 1NSK BMJ319 Spindles
- 5 x 571-55 Live Tool Holders for Cross working
- 2 x OR-122 ER16 Back working drill sleeves
- 1 x 101-04 ER16 Back working drill sleeve
- 1 x OR-121 ER16 Back working drill sleeves ( T24 or T28)
- 2 x 5/8 inch Boring bar holders for back working
- 1 x Double sleeve holder for T15
- Custom Manifold blocks on drill sleeve holders with control for each tool station
SPECIFICATIONS
Standard Machine Specs |
||
|---|---|---|
| Max. machining diameter | Ø 20 mm (25/32 in) | |
| Max. headstock stroke (Standard) | 205mm (8 in) | |

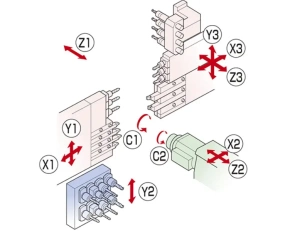

| Tool post configuration | Front | Turning Tool + Power-driven tool |
| Rear | Turning Tool + End working stationary tool + Power-driven tool | |
| Number of turning tools | Front | 4 tools (12mm/16mm) |
| Rear | 2 tools (12mm/16mm) | |
| 4-spindle sleeve holder | Number of tools | Front 4 tools |
| Rear 2 tools (max. 4 tools) | ||
| Max. drilling capacity | Ø 10 mm (25/64 in) | |
| Max. tapping capacity | M8 x P1.25 | |
| Power driven att. | Number of tools | Front: 3 tools |
| Rear: 3 tools | ||
| Max. drilling capability | Ø 8 mm (5/16 in) | |
| Max. tapping capability | M6 x P1.0 | |
| Max. milling capability | Ø 10 mm (25/64 in) | |
| Max. slotting capability | 1.5mm (W) x 4mm (D) | |
| Main spindle indexing angle | C-axis control | |
| Main spindle speed | Max. 10,000 min-1 | |
| Main spindle motor | Built-in motor drive 2.2kw (Continuous)/3.7kw (10min/25%ED) |
|
| Dimensions (W x D x H) | 2,588 x 1,150 x 1,765 mm | |
| Weight | 3,500 kg | |
Backworking Attachment |
||
|---|---|---|
| Max. chucking diameter | Ø 20 mm (25/32 in) | |
| Max. length for front ejection | 80mm (3-5/32 in) | |
| Max. work projection length | Ø 30 mm (1-11/64 in) | |
| Number of tools | 8 tools | |
| 4-spindle unit | Max. drilling capability | Stationary tool: Ø 10 mm (25/64 in) |
| Power-driven tool: Ø 8 mm (5/16 in) | ||
| Max. tapping capabiilty | Stationary tool: M8 x P1.25 | |
| Power-driven tool: M6 x P1.0 | ||
| Sub-spindle indexing angle | C-axis control | |
| Sub-spindle speed | Max. 10,000 min-1 | |
| Sub-spindle motor | Built-in motor drive 2.2kw (Continuous)/ 3.7kw (10min. /25%ED) |
|
| Power-driven att. spindle speed | Max. 8,000 min-1 | |
